PRODUCT DISCRIPTION
Vac Air Technologies is manufactures, supplies and experts in FULLY AIR COOL HIGH PRESSURE AIR COMPRESSOR breathing air compressors and services in india. FULLY AIR COOL HIGH PRESSURE AIR COMPRESSOR pressure more and more air into a storage space tank, increasing the pressure. When tank force reaches its upper limit the air compressor shuts off. The power contained in the compacted air can be applied for a range of applications. These Air Compressors are ideal for sand blasting & other pneumatic application where huge quantity of air required at less pressure
PRODUCT OVERVIEW

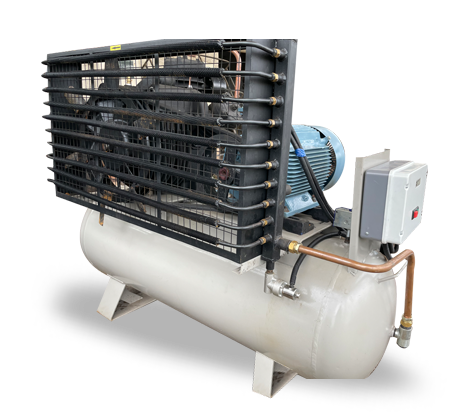

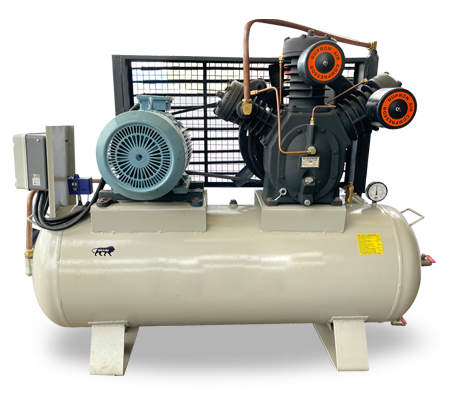

FULLY AIR COLLED HIGH PRESSURE AIR COMPRESSOR MODEL VAP 715TH
FULLY AIR COLLED HIGH PRESSURE AIR COMPRESSOR MODEL VAP 725TH
FULLY AIR COLLED HIGH PRESSURE AIR COMPRESSOR MODEL VAP 725TH
TECHNICAL SPECIFICATION
| Model | Cylinders Size x Stroke |
Motor Hp | RPM | PD CFM |
FAD CFM |
Maximum psig |
Pressure cm2 |
Air Receiver (ltrs.) |
|---|---|---|---|---|---|---|---|---|
| VAP-731 | 3"&1.25'x2.75" | 3 | 600 | 7.40 | 4.80 | 500 | 35.15 | 150 |
| VAP-731 | 3'&1"x4” | 5 | 800 | 13.1 | 4.31 | 1000 | 70.30 | 200/300 |
| VAP-707T2 | 5"&2"x4" | 12.5 | 800 | 36.37 | 21.60 | 500 | 35.15 | 300/500 |
| VAP-715T2 | 5.5"83"&1.625"x4" | 15 | 750 | 41.26 | 31.41 | 500 | 35.15 | 500 |
| VAP-715T2 | 5.5"83"&1.625"x4" | 20 | 900 | 49.51 | 37.70 | 640 | 45 | 500 |
| VAP-715TH | 5"&5"&3"x4" | 15 | 700 | 64 | 37 | 358 | 25.19 | 300/500 |
| VAP-715TH | 5"&5"&3"x4" | 20 | 800 | 78 | 54 | 358 | 25.19 | 300/500 |
| 71512 Duplex | 5.5"x3x1.6"&5"x4" | 20x20 | 900 | 99.02 | 75 | 640 | 45 | 500 |
| 715TH Duplex | 5"x5"x3"x4" | 20x20 | 800 | 156 | 108 | 358 | 25.19 | 500 |
