PRODUCT DISCRIPTION
Vac Air Technologies is manufactures, supplies and experts in Reciprocating Low pressure breathing air compressors and services in india. Reciprocating Low Pressure Air Compressor pressure Low air into a storage space tank, increasing the pressure. When tank force reaches its upper limit the air compressor shuts off. The power contained in the compacted air can be applied for a range of applications.
PRODUCT OVERVIEW

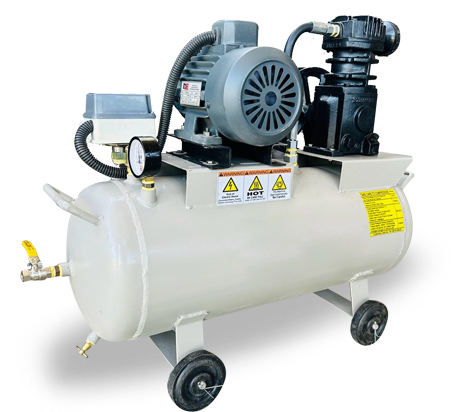

LOW PRESSURE RECIPROCATING AIR COMPRESSOR MODEL VA S701
TECHNICAL SPECIFICATION
TWO STAGE RECIPROCATING INDUSTRIAL AIR COMPRESSOR
| Model | Cylinders Size x Stroke |
Motor Hp | RPM | PD CFM |
FAD CFM |
Maximum psig |
Pressure kg/cm2 |
Air Receiver (ltrs.) |
|---|---|---|---|---|---|---|---|---|
| VA-S701 | 2.75" | 1 | 750 | 5.15 | 3.73 | 125 | 8.75 | 50/100 |
| VA-S702 | 2.75"82.75" | 2 | 900 | 12.36 | 9.06 | 125 | 8.75 | 150 |
| VA-S735 | 3"&3"x2.75" | 3 | 660 | 14.85 | 10.07 | 80 | 5.62 | 150/200 |
| VA-S744 | 4"84"x2.75" | 5 | 866 | 34.60 | 22.20 | 80 | 5.62 | 200/250 |
| VA-S755 | 5"&5"x3.5" | 10 | 800 | 52.80 | 39.10 | 80 | 5.62 | 250/300 |
| VA-707S2 | 5.5 85.5"x4" | 12.5 | 800 | 88 | 66 | 40 | 2.81 | 300/500 |
| VA-715S2 | 5.5 85.5"&5.5"x4" | 20 | 900 | 148.50 | 111.40 | 40 | 2.81 | 500 |
