PRODUCT DISCRIPTION
Vac Air Refrigerated air dryers are the most advanced and cheapest mode of drying compressed air. This dryer operates on the principle that cooling of the compressed air. causes condensation of water carried by the compressed air in vapour form. In the refrigerated type of air dryer the cooling takes place in two stages.
PRODUCT OVERVIEW

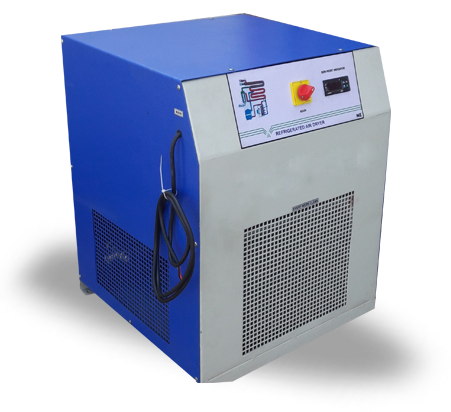

REFRIGERATED AIR DRYER MODEL VA – 40
REFRIGERATED AIR DRYER MODEL VA – 80

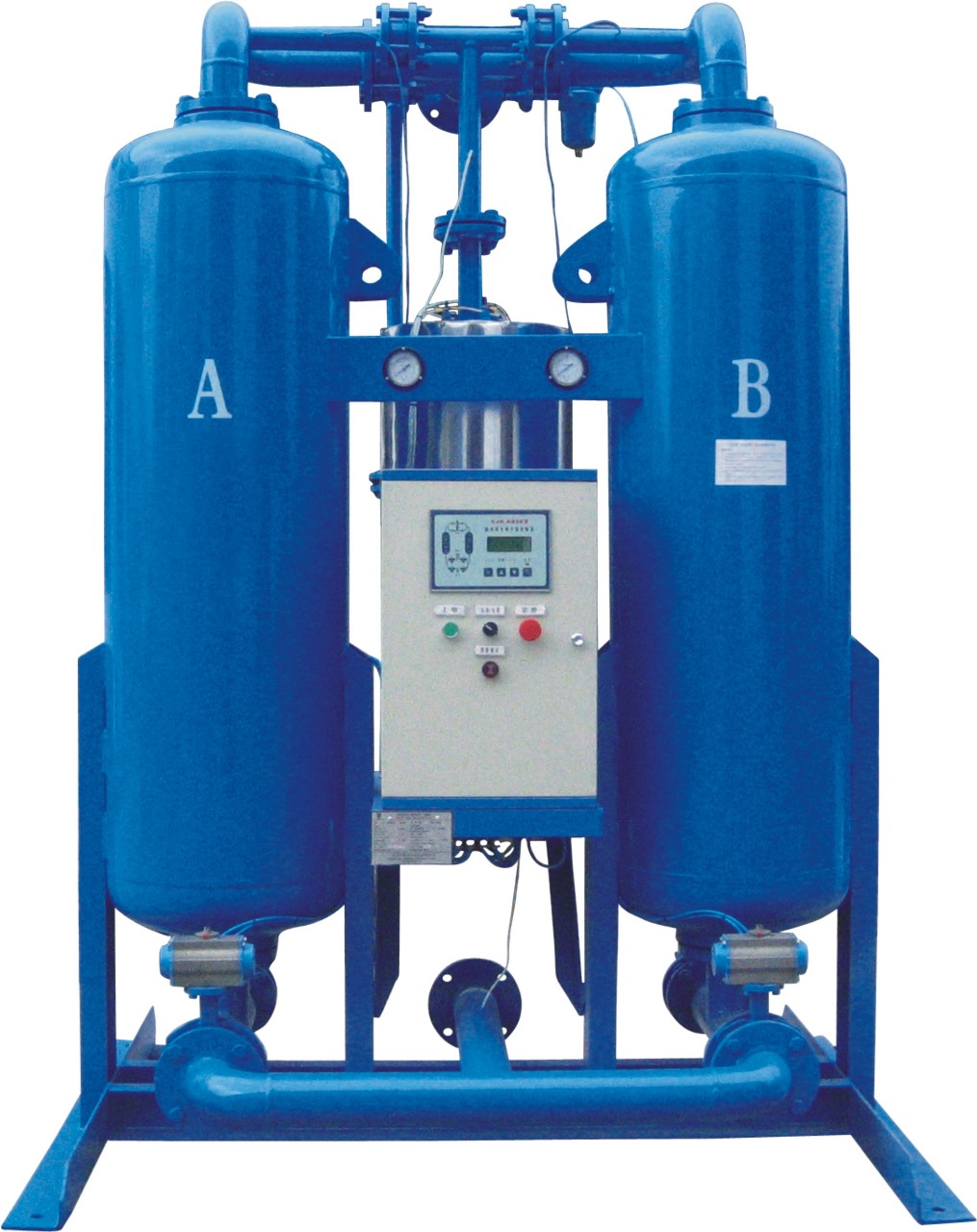

Desiccant Drye Air Dryer
TECHNICAL SPECIFICATION
| Refrigerated Air Drier |
|---|
| Dew Point Atmospheric : – 23 degree C |
| Moisture Content in comp.Air : 700 ppm |
| Purge Air loss : Nil |
| Model | Capacity (CFM) |
|---|---|
| VA – 20 | 20 |
| VA – 40 | 40 |
| VA – 60 | 60 |
| VA – 80 | 80 |
| VA – 100 | 100 |
| VA – 150 | 150 |
| VA – 200 | 200 |
| VA – 250 | 250 |
| VA – 300 | 300 |
| VA – 400 | 400 |
| VA – 500 | 500 |
| VA – 600 | 600 |
| VA – 750 | 750 |
| VA – 1000 | 1000 |
